Flowmake product range
Browse all 25 product series and support systems shown in the Flowmake catalogue. Jump to a product family or use your browser’s Find command to locate a model.
Sealing solutions
Browse every Flowmake catalogue series by seal family, application or series number.
Want to browse the full printed catalogue?
View brochure and downloadAll 25 catalogue product series are shown.

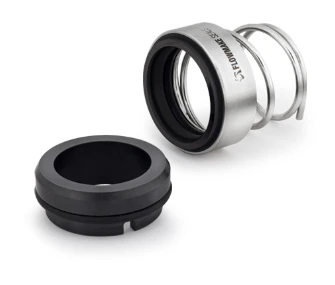

Conical spring
Series FMS601 is a single conical-spring, unbalanced seal with an O-ring for secondary sealing. Torque transmission is through the single coil spring, so the seal is direction-dependent; right- and left-handed springs are available for clockwise and anticlockwise shafts. Applications include submersible, sewage, chemical-transfer and water pumps.
Single spring
Series FMS101 is an unbalanced single-acting helical coil spring seal, independent of direction of rotation. The drive ring's notch design eliminates overstressing of the elastomer bellows. Slippages are eliminated, protecting the shaft and sleeve from fretting. The seal can be repaired in the field with minimum spares, minimizing downtime cost.
Single spring
Series FMS102 is an unbalanced single-acting helical coil spring seal, independent of direction of rotation. The drive ring's notch design eliminates overstressing of the elastomer bellows. Slippages are eliminated, protecting the shaft and sleeve from fretting. The seal can be repaired in the field with minimum spares, minimizing downtime cost.
Multi spring
Series FMS201 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring unbalanced seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.

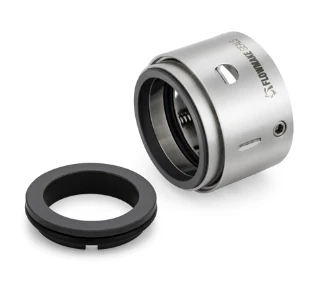

Multi spring
Series FMS202 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring unbalanced seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.
Multi spring

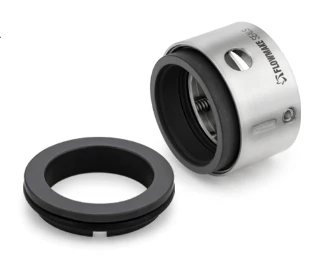

Series FMS203 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring unbalanced seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.
Multi spring

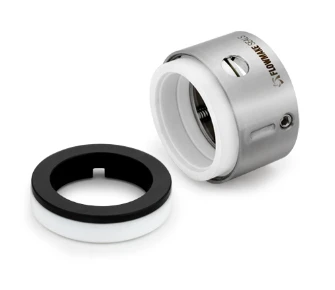

Series FMS204 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring unbalanced seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.

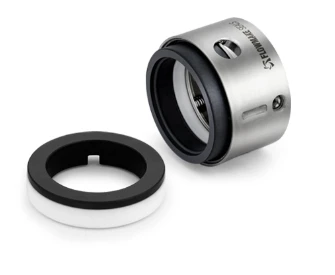

Multi spring
Series FMS205 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring unbalanced seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.
Reverse balance
Series FMS301 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring reverse-balance seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.
Reverse balance
Series FMS302 is a multi-spring reverse-balanced seal that can be externally mounted and is internally balanced with a multi-coil spring seal. It is made from high-quality raw materials for durability. Its compact design eliminates the need for a shaft step or sleeve and limits the space required for installation.
Dura type
Series FMS401 pump seals are very easy to replace and provide maximum reliability. The range includes multi-spring unbalanced seals and continues to evolve with current market trends and expectations. They are durable and provide high operational reliability.
Rubber bellow
A resilient rubber bellow mechanical seal for pump applications. Contact Flowmake Seals to confirm the materials and configuration for your operating conditions.
Rubber bellow
A flexible rubber bellow mechanical seal designed for dependable secondary sealing. Contact Flowmake Seals to confirm the materials and configuration for your operating conditions.
Rubber bellow
A rubber bellow mechanical seal for pump and process equipment applications. Contact Flowmake Seals to confirm the materials and operating suitability.
PTFE bellow
A PTFE bellow mechanical seal for applications requiring chemical-resistant sealing. Contact Flowmake Seals to confirm material and operating suitability.
Rubber bellow

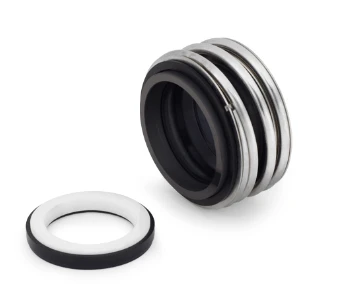

Series FMS801 is a commonly used rubber bellow seal with a compact design for easy mounting. Its rubber-bellow secondary seal provides axial flexibility to compensate for shaft misalignment and wear due to thrust movement. The driving torque is transmitted through the rubber bellow, and face materials are interchangeable without modifying dimensions.
Rubber bellow
Series FMS802 is a commonly used rubber bellow seal with a compact design for easy mounting. Its rubber-bellow secondary seal provides axial flexibility to compensate for shaft misalignment and wear due to thrust movement. The driving torque is transmitted through the rubber bellow, and face materials are interchangeable without modifying dimensions.
Rubber bellow

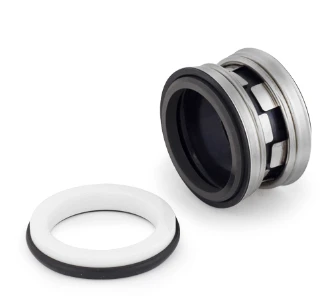

Series FMS803 is a commonly used rubber bellow seal with a compact design for easy mounting. Its rubber-bellow secondary seal provides axial flexibility to compensate for shaft misalignment and wear due to thrust movement. The driving torque is transmitted through the rubber bellow, and face materials are interchangeable without modifying dimensions.
Lip seal
Rotary applications have specific requirements, including keeping the seal stationary in the gland and resisting rotational forces at the seal/shaft interface. Rotary lip seals use an anti-rotation feature and maintain shaft contact to create a positive seal. Eclipse PTFE-based ET materials provide a low-friction solution for long seal life.
Rotary joint

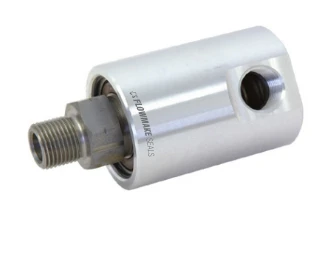

The Series FMS1001 rotary joint can be used in a wide variety of settings, from low speed to high speed and from low pressure to high pressure. Using a special seal, this rotary joint is manufactured for use in a wide range of industries.

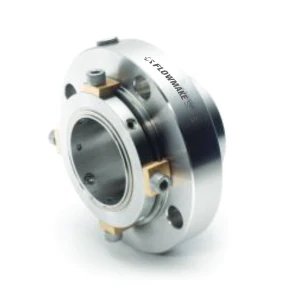

Cartridge seal
The Series FMS2001 is a simple-to-install, unitized cartridge-mounted, balanced, multiple-spring mechanical seal that requires no measuring for installation. The seal faces are protected from damage and contamination by dirt and foreign particles. Slide the seal onto the shaft, bolt down the gland, tighten the set screws and remove the location plate; the gland positions the seal faces for maximum protection.
Dry seal

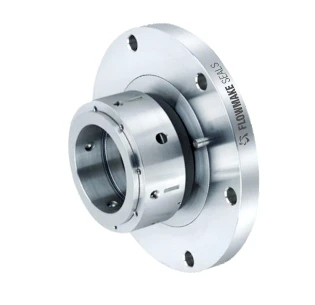

Series FMS3001 is designed as a dry-running seal for corrosive services. These seals do not require lubricant or quenching for cooling. They are used for mixers, agitators and reactors, including sanitary applications where product contamination from barrier fluids is unacceptable.

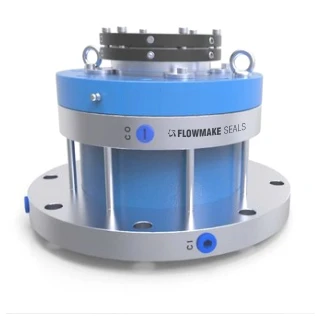

Agitator seal
Series FMS4001 agitator seals are designed for severe services, including products emitting highly toxic vapours during reaction processes. The compact, unitized cartridge assembly is easy to install and is independent of direction of rotation. These seals require cooling and quenching for better performance.
Split seal

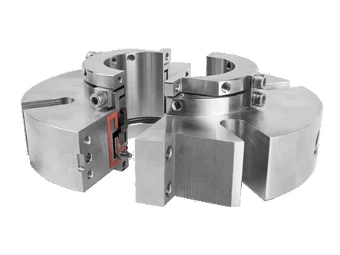

Series FMS5001 is a split mechanical seal developed with minimum components for large-diameter shafts on mixers, agitators, reactors and blenders. It can be installed without dismantling equipment. The split seal faces are balanced and covered with split O-rings to suit a range of equipment and housing configurations.

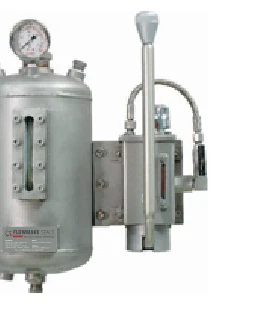

Seal support system
The thermosiphon provides lubrication, dissipates heat and maintains temperature and the required pressure gradient across seal faces in double-back-to-back and tandem seal arrangements for pumps and agitators. Plan 52 and 53A configurations are available; reservoir instrumentation and construction can be adapted to application requirements.
Product images and series descriptions are taken from the Flowmake catalogue. Confirm dimensions, materials and operating limits for your specific configuration before selection.
Download website catalogueNeed help with selection?
Share your equipment and operating conditions to continue the product conversation.
Make an inquiry Download the website catalogue
